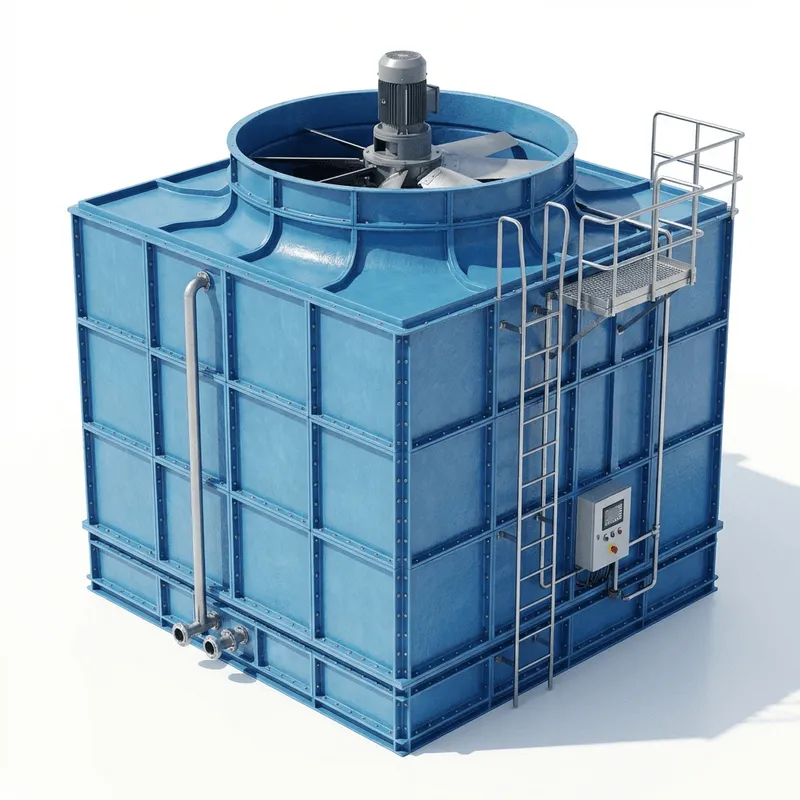

Alita FRP Cooling Tower

High-strength FRP modular industrial cooling system, strictly executing GB7190-1997 standards, providing standardized and custom services.

GB7190 Standard

Modular System

Thermal-Fluid Efficiency

TECHNICAL DRAWING

Structural Drawing

Utilizing fluid-dynamic trapezoidal wave cooling structures. W-H represents cross-section, L-Ln represents longitudinal parallel view, units in mm.

Circulating water turbidity should be maintained at ≤ 50mg/L to ensure cooling fills don't scale or clog.

Inlet Temp (t1)37℃

Outlet Temp (t2)32℃

Wet Bulb Temp (WBT)28℃

Dry Bulb Temp (θ)31.8℃

Atm Pressure (P)9.94×10⁴ Pa

Inlet Temp (t1)43℃

Outlet Temp (t2)33℃

Wet Bulb Temp (WBT)28℃

Dry Bulb Temp (θ)31.8℃

Atm Pressure (P)9.94×10⁴ Pa

Model	Water Flow (m³/h)	Fan Power (kW)	Air Flow (m³/h)	Head (mh₂O)	Size (mm)
CLF-75L	75	3	47000	3	2400×2400×4470
CLF-100L	100	4	59000	3.1	2800×2800×4720
CLF-125L	125	4	88000	3.1	2800×2800×4720
CLF-150L	150	5.5	100000	3.3	3200×3200×4760
CLF-175L	175	5.5	117000	3.3	3200×3200×4760
CLF-200L	200	7.5	132000	3.4	3600×3600×4900
CLF-250L	250	7.5	176000	3.4	4000×4000×5220
CLF-300L	300	11	193000	3.4	4400×4400×5640
CLF-400L	400	11	234000	3.6	5000×5000×5740
CLF-500L	500	15	293000	3.6	5600×5600×6130
CLF-600L	600	18.5	352000	3.7	6200×6200×6150

We support deep simulation selection based on your actual temperature differential and WBT for optimal configuration advice.
