FILAMENT WINDING TECHNOLOGY
FRP Tanks / Towers / Wound Products
Alita utilizes mechanized high-tension, multi-layered, and multi-angle cross-winding processes. We strictly follow national standards and perform momentless theory wall thickness designs for special loads.
High-Tension Process
JC/T587 Compliance
Membrane Theory Design

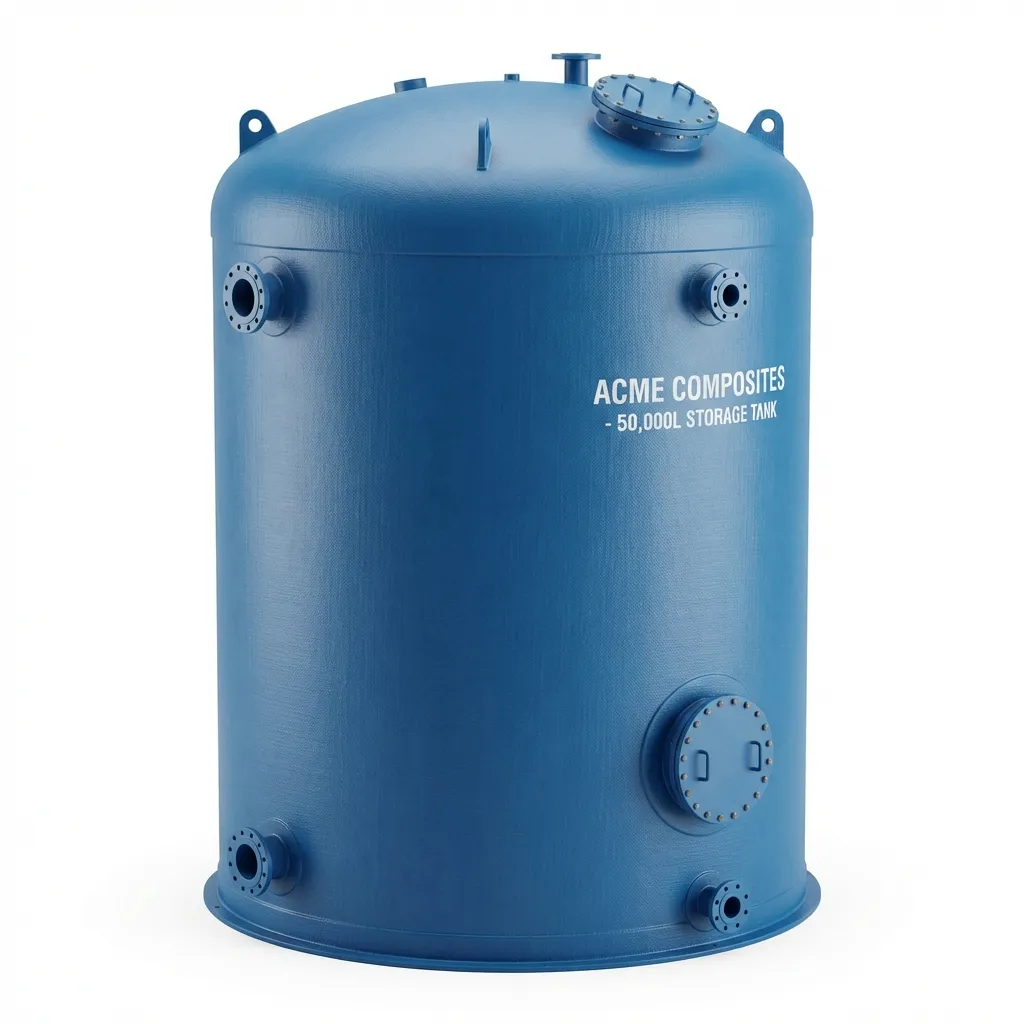

Vertical Tanks
Traditional vertical industrial storage tanks, widely used in chemical, pharmaceutical, and water treatment sectors.
Standard Diameter List (DN)
DN800
DN1000
DN1200
DN1400
DN1500
DN1600
DN1700
DN2000
DN2200
DN2500
DN3000
DN3200
DN3500
DN3800
DN4000
Volume Specifications (m³)
0.5m³
1m³
2m³
3m³
4m³
5m³
6m³
8m³
10m³
12m³
15m³
18m³
20m³
25m³
30m³
35m³
40m³
50m³
60m³
70m³
80m³
90m³
100m³
110m³
120m³
130m³
140m³
150m³
Filament Winding Pattern
3D TECHNICAL MODEL
Alita Winding Tech Standards
- Lamination Thickness: Dynamic Calculation
- Fiberglass: High Strength E-Glass
- Standard: JC/T587-1995
Hoop Tensile Limit (σθ₂)
110MPa
Axial Tensile Limit (σθ₂)
50MPa
Can't find a specific spec?
We have comprehensive non-standard design capabilities, supporting special media environments and extreme diameter customization.
